Special Issue "Application of Nanocomposite in Biomaterials"

A special issue of Symmetry (ISSN 2073-8994). This special issue belongs to the section "Life Sciences".

Deadline for manuscript submissions: closed (31 July 2023) | Viewed by 2690

Special Issue Editors

Division of Dentistry, The University of Manchester, Oxford Rd, Manchester M13 9PL, UK
Interests: resin composites; polymerisation; mechanical properties; surface characterisation; spectroscopy
Special Issues, Collections and Topics in MDPI journals
Department of Engineering, Manchester Metropolitan University, Manchester, UK
Interests: surface engineering; thin film coating; metal machining; advanced welding; manufacturing; composite; dental materials; tribology; wear; machine learning; image processing; 3D printing
Special Issues, Collections and Topics in MDPI journals

Special Issue Information

Dear Colleagues,

Symmetry and asymmetry features are commonly observed in the biological systems. For example in dentistry, symetric oral structure, teeth etc define the overall shape, beauty and functionalities. Biomedical materials with symmetrical and asymmetrical properties have been developed to replace any damaged tissue or bone structure in order to restore the asthetics and functionalities.

The aim of this special issue is to collate research articles on the current advancements in nanocomposites for biomedical applications with a focus on symmetrical and asyemmtrical charatceristics in biomaterial design, development and characterisation. We invite expert researchers and academics in this field to contribute original research articles and critical reviews.

For the biomedical applications, polymer nanocomposites are fabricated by combining different types of nanofillers uniformly distributed in a polymer matrix. This special type of composites provide a unique opportunity to customise the material properties in different biomedical fileds such as replacing body parts, tissue engineering, antimicrobial resistance and drug delivery to address many challenges remaining in the healthcare sector. Nanomaterials come in different shapes such as nanoparticle, nanoflake, nanotube, nanosheet, nanorod, nanowhiskers etc. On the other hand the matrix materials could include mainly two types of polymers: natural biobased materials (e.g., chitosan) and synthetic polymer (e.g., PMMA). The nanofillers can play key role in improving physical, chemical, optical or biological propeties of the composite material. Biomimetic polymer composites for improved mechcanical properties and advances in 3D printing fabrication of nanocomposites are also welcome.

Prof. Dr. Nikolaos Silikas
Dr. Julfikar Haider
Guest Editors

Manuscript Submission Information

Manuscripts should be submitted online at www.mdpi.com by registering and logging in to this website. Once you are registered, click here to go to the submission form. Manuscripts can be submitted until the deadline. All submissions that pass pre-check are peer-reviewed. Accepted papers will be published continuously in the journal (as soon as accepted) and will be listed together on the special issue website. Research articles, review articles as well as short communications are invited. For planned papers, a title and short abstract (about 100 words) can be sent to the Editorial Office for announcement on this website.

Submitted manuscripts should not have been published previously, nor be under consideration for publication elsewhere (except conference proceedings papers). All manuscripts are thoroughly refereed through a single-blind peer-review process. A guide for authors and other relevant information for submission of manuscripts is available on the Instructions for Authors page. Symmetry is an international peer-reviewed open access monthly journal published by MDPI.

Please visit the Instructions for Authors page before submitting a manuscript. The Article Processing Charge (APC) for publication in this open access journal is 2400 CHF (Swiss Francs). Submitted papers should be well formatted and use good English. Authors may use MDPI's English editing service prior to publication or during author revisions.


  • Dental biomaterials
  • 3D printing
  • nanocomposites
  • polymer resin
  • nanoparticles (ZrO2, TiO2, Al2O3, etc.)
  • design and fabrication
  • biodegradable
  • biomimetic
  • mechanical characterisation (flexural strength, hardness, fracture toughness, etc.)
  • physical, biological and optical characterisations
  • dentistry
  • bone material
  • drug delivery.

Published Papers (1 paper)

Order results
Result details
Select all
Export citation of selected articles as:


13 pages, 3402 KiB
Evaluating Polishability of Zirconia Impregnated PMMA Nanocomposite for Denture Base Application
Symmetry 2021, 13(6), 976; https://doi.org/10.3390/sym13060976 - 31 May 2021
Cited by 1 | Viewed by 1815
Artificial biomaterials are being developed for use in denture base with symmetrical properties to restore the aesthetics and functionalities. The rough surface of denture base resin promotes the adhesion of microorganisms and plaque accumulation. This study aimed to explore the consequences of polishing [...] Read more.

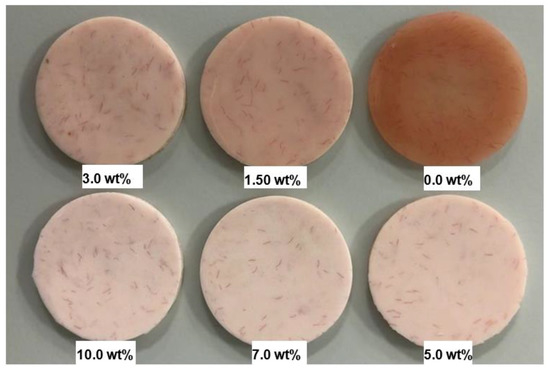

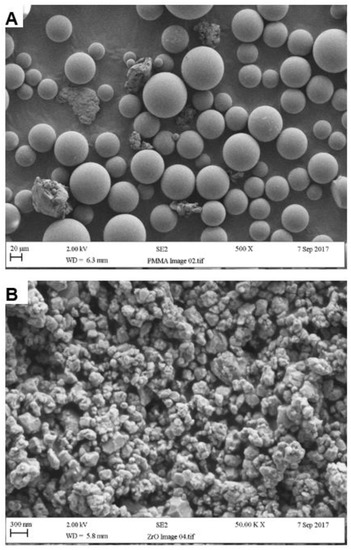

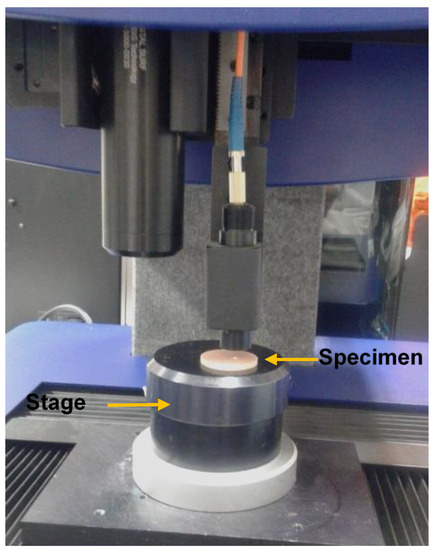

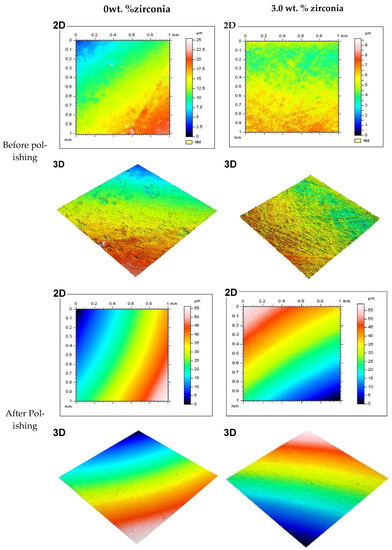

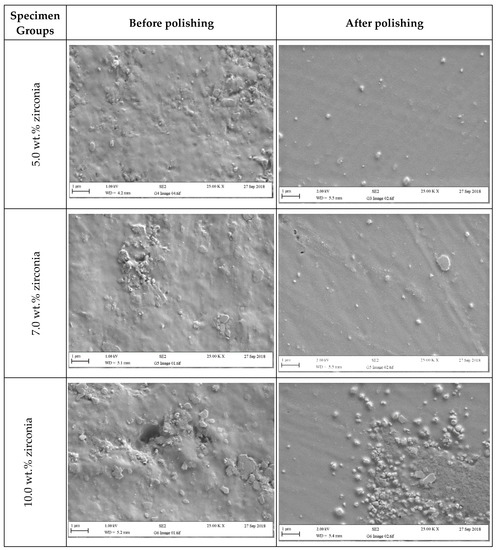

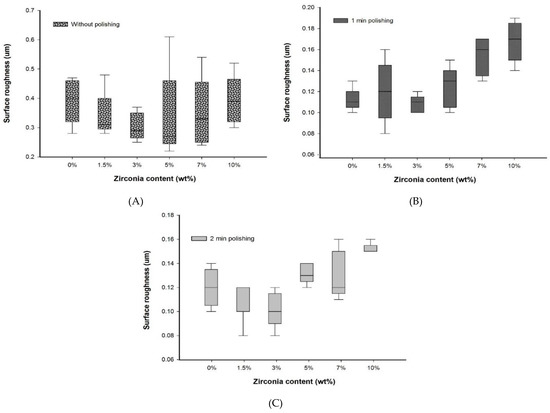

Artificial biomaterials are being developed for use in denture base with symmetrical properties to restore the aesthetics and functionalities. The rough surface of denture base resin promotes the adhesion of microorganisms and plaque accumulation. This study aimed to explore the consequences of polishing times on the surface roughness of high-impact (HI) heat-polymerized PMMA denture base acrylic resin reinforced with zirconia nanoparticles (nanocomposite). Thirty specimens (25 ± 0.50 mm in diameter and 2 ± 0.10 mm thickness) were fabricated from HI PMMA by adding zirconia nanoparticles at different concentrations of (0 wt.%, 1.5 wt.%, 3 wt.%, 5 wt.%, 7 wt.%, and 10 wt.%). Specimens were divided into six groups (n = 5) and surface roughness (Ra) was measured before and after polishing with a standard protocol for one and two minutes. The addition of zirconia in PMMA at low concentrations (1.5 wt.%, 3 wt.%, and 5 wt.%) did not negatively affect the surface finish of the denture base composites following conventional polishing and remained below the clinically acceptable limit (0.2 µm). After one minute of polishing, only the 10 wt.% zirconia (0.17 ± 0.03 µm) demonstrated a substantial rise in median surface roughness, in comparison with the control group (0.11 ± 0.01 µm). It is concluded that the group containing 3 wt.% (0.10 ± 0.01 µm) of zirconia is the optimum concentration to obtain the best symmetrical surface finish after two minutes of polishing. Full article
(This article belongs to the Special Issue Application of Nanocomposite in Biomaterials)
Show Figures

Figure 1

Back to TopTop
