Article

PgMYB1 Positively Regulates Anthocyanin Accumulation by Activating PgGSTF6 in Pomegranate

by
Zenghui Wang
1,
Xuemei Yang
1,
Chuanzeng Wang
1,
Lijuan Feng
1,
Yanlei Yin
1,* and
Jialin Li
2,*
1
Shandong Institute of Pomology, Tai’an 271000, China
2
School of Biological Science and Technology, University of Jinan, Jinan 250022, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(7), 6366; https://doi.org/10.3390/ijms24076366
Submission received: 3 March 2023 / Revised: 24 March 2023 / Accepted: 27 March 2023 / Published: 28 March 2023
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
The peel color of pomegranates is an important exterior quality that determines market value. Anthocyanins are biosynthesized in the cytosol and then transported to the vacuole for storage. However, the molecular mechanism that determines the color variation between red and white pomegranates remains unclear. In this study, we identified an R2R3-MYB protein (PgMYB1) that interacts with the PgGSTF6 promoter and regulates its transcriptional expression, thus promoting the accumulation of anthocyanins in pomegranate. The expression of PgMYB1 and PgGSTF6 was positively correlated with the anthocyanin content in red and white pomegranates. Further investigation showed that the knockdown of PgMYB1 in red pomegranate ‘Taishanhong’ (TSH), by the virus-induced gene-silencing system, inhibited anthocyanin accumulation. Together, our results indicate that PgMYB1 controls the transport of anthocyanin via PgGSTF6 and thus promotes anthocyanin accumulation in red pomegranates. Our results have a certain reference value for further clarifying the regulation of anthocyanin synthesis and transport in pomegranate fruits.

1. Introduction

Pomegranate (Punica granatum L.) originated in central Asian countries [1,2]. In China, many high-genetic-diversity pomegranate varieties have been cultivated for about 2000 years [3]. The exterior fruit color of pomegranates, with red and white variability, reflects differences in anthocyanin concentrations [4]. Anthocyanins play an essential role in seed dispersal, resistance to pathogens, and protection against ultraviolet radiation [5,6,7]. They can also be beneficial for humans in protecting against diseases [8,9,10]. The presence of anthocyanins in pomegranate has important effects on fruit quality; however, the molecular genetics of anthocyanin biosynthesis and transport in pomegranate is still sparse. Many studies have focused on the components and content of pomegranate anthocyanins in fruit peels and juices [11,12].
MYBs are involved in regulating secondary metabolism, organ morphogenesis, and circadian rhythm [13,14,15]. The MYB-bHLH-WD40 (MBW) protein complex regulates anthocyanin biosynthesis [16,17,18]. The transcription levels of anthocyanidin synthase (ANS), UDP-glucose:flavonoid-3-O-glucosyltransferase (UFGT), and the regulatory gene PcMYB10 in red pears were found to be significantly higher than those in yellow pears [19]. Glutathione S-transferase (GST) has been shown to play a key role in anthocyanin transport [20,21,22,23,24]. According to sequence relatedness, the GST superfamily can be divided into 14 classes: tau (U), phi (F), lambda (L), theta (T), dehydroascorbate reductase (DHAR), tetrachloro hydroquinone dehalogenase (TCHQD), zeta (Z), glutathionyl hydroquinone reductase (GHR), iota, mPGES-2, Ure2p, elongation factor 1Bγ (EF1Bγ), metaxin, and hemerythrin, of which GSTF is the plant-specific class [25,26,27,28]. In plants, GSTs are also involved in many endogenous biological processes, including flavonoid accumulation and anthocyanin transport [29,30] in various fruit crops, such as in apple, lychee, strawberry, and peach [20,21,31,32,33].
The process of anthocyanin biosynthesis is catalyzed by enzymes in the flavonoid pathway, including chalconesynthase (CHS), chalcone isomerase (CHI), flavanone 3-hydroxylase (F3H), dihydroflavonol 4-reductase (DFR), anthocyanidin synthase (ANS), and UDP-glucose: flavonoid-3-O-glucosyltransferase (UFGT) [34]. MdMYBA binds to the MdANS promoter, while MdMYB1 binds to the promoters of MdDFR, MdGSTF6, and MdUFGT. MdMYB10 interacts with MdbHLH3/33 to increase the activity of the MdDFR promoter in apple [34,35]. PgMYB is important for flavonoid biosynthesis; other transcription factors appear to also be necessary for the regulation of anthocyanin biosynthesis [2]. However, how PgMYB regulates PgGSTF6 expression combined with anthocyanin synthesis and transport in pomegranate is still unknown.
Currently, the mechanisms that determine anthocyanin synthesis and transport in other plants are well known, but little is known specifically regarding pomegranate. In our study, the R2R3-MYB transcription factor PgMYB1 was found to play a key role in anthocyanin accumulation in pomegranate. We hypothesized that PgMYB1 directly activates the expression of PgGSTF6 and is positively correlated with the expression level of PgANS, thus promoting anthocyanin accumulation. We aimed to investigate the key role that PgMYB1 plays in anthocyanin synthesis and transport in pomegranate.

2. Results

2.1. Phylogenetic Analysis and Subcellular Localization of PgMYB1

To identify the putative MYB1 gene in the pomegranate genome, BlastP was used to search the pomegranate genome database based on apple MYB1 (NP_001288045.1) protein. To explore the homology of the PgMYB1 gene among different plant species, a phylogenetic tree was constructed. We found that PgMYB1 was clustered within the R2R3-MYB clade, which includes MdMYB1 (apple), CmMYB6 (chrysanthemum), and other proteins that have been identified as being involved in anthocyanin synthesis (Figure 1a). The comparative analysis of the amino acid sequence of PgMYB1 and its close homologs showed that the PgMYB1 protein is an R2R3-MYB transcription factor (Figure S1). We constructed a translational fusion protein, 35S:PgMYB1-GFP, to determine the subcellular localization of PgMYB1. The 35S:PgMYB1-GFP fusion protein showed a fluorescent signal in the nucleus (Figure 1b,c), suggesting that PgMYB1 was translated in the nucleus.

2.2. Identification and Analysis of GSTF Genes in Pomegranate

To identify the putative GSTF family genes in the pomegranate genome, BlastP was used to search against the pomegranate genome database based on 15 apple GSTF proteins. A total of 18 GSTF genes were identified in the pomegranate genome. The comparative analysis of the amino acid sequences of 18 GSTF proteins and their close homologs showed that the pomegranate GSTF proteins are highly conserved (Figure S2). To explore the homology of GSTF genes among different plant species, a phylogenetic analysis was conducted to compare GSTF proteins from pomegranate, Arabidopsis, apple, dragon’s blood tree, and maize. PgGSTF6 was clustered within the GSTF clade, which includes MdGSTF6 and other proteins identified as being involved in anthocyanin transport (Figure 2), suggesting that PgGSTF6 may be involved in pomegranate anthocyanin transport.

2.3. Expression Patterns of PgMYB1, PgANS, and PgGSTFs in Different Developmental Stages of TSH and SBT

Previous research has shown that MdMYB1 plays a key role in anthocyanin transport via MdGSTF6 [34]. To further confirm that PgMYB1 is involved in anthocyanin accumulation via PgGSTFs in pomegranate, samples of two pomegranate cultivars, TSH, with red fruit peels, and ‘Sanbaitian’ (SBT), with white fruit peels at maturity, were screened as experimental materials (Figure 3a). We observed higher expression levels of PgMYB1 (GenBank accession number: OWM81764.1) in S1–S4 of TSH than those in SBT (Figure 3b). The expression level trends of PgGSTF9 (GenBank accession number: NC_045127.1) and other PgGSTF genes were not obvious in different developmental stages of TSH and SBT (Figure 3b and Figure S3). We also observed lower expression levels of PgANS (GenBank accession number: AHZ97874.1) and PgGSTF6 (GenBank accession number: NC_045131.1) in S1–S6 of SBT than in TSH, indicating that PgMYB1, PgANS, and PgGSTF6 play a key role in anthocyanin synthesis and transport in pomegranate (Figure 3b). This finding prompted us to explore the mechanism leading to high anthocyanin levels in red pomegranate.

2.4. PgMYB1 Positively Regulates Anthocyanin Accumulation in Pomegranate

Previous studies have clarified that MdMYB1 positively regulates anthocyanin accumulation in apple [34]. To demonstrate whether PgMYB1 is essential for pomegranate fruit coloration, we used a virus-induced gene-silencing system to conduct a transient expression assay. The injection sites on the pomegranate peel turned lighter red after transformation with pTRV2-PgMYB1 and pTRV1. However, there was no obvious phenotypic change observed after the transformation with the pTRV2 vector (Figure 4a). Additionally, the anthocyanin content in pTRV2-PgMYB1 pomegranate peels was lower than that in pTRV2 pomegranate peels (Figure 4b).
Knockdown of PgMYB1 strongly downregulated the expression of PgMYB1. Furthermore, we performed qRT-PCR to further study the expression patterns of other genes in the anthocyanin biosynthesis pathway in pTRV2-PgMYB1 pomegranate peels. We observed that PgGSTF6 and PgANS were less expressed in pTRV2-PgMYB1 pomegranate peels (Figure 4c). Knockdown of PgMYB1 affected the expression level of PgGSTF6 and PgANS. Together, our results show that the lower expression of PgMYB1 may affect anthocyanin accumulation via downregulated expression of PgGSTF6 and PgANS, indicating that PgMYB1 plays a key role in anthocyanin accumulation in pomegranate.

2.5. PgMYB1 Directly Regulates PgGSTF6 Transcription

To further understand the mechanism by which PgMYB1 regulates anthocyanin accumulation in pomegranate, yeast one-hybrid (Y1H) assays were performed. These assays showed that PgMYB1 binds to the PgGSTF6 promoter and activates its expression (Figure 5a). To further investigate whether PgMYB1 activates the transcriptional expression of PgGSTF6, transient expression assays were conducted. As expected, the PgMYB1 plus proPgGSTF6:GUS treatments showed significantly higher GUS activity (Figure 5b,c). Furthermore, we performed qRT-PCR to further study the expression level of GUS in tobacco leaves. We found higher GUS expression levels in PgMYB1 plus proPgGSTF6:GUS tobacco leaves than in the proPgGSTF6:GUS leaves (Figure 5d). These results show that PgMYB1 could bind to the PgGSTF6 promoter and activate its expression in pomegranate.
To further reveal how the transcriptional regulation mechanism of PgMYB1 regulates the PgGSTF6 gene expression, the promoter sequence of PgGSTF6 was analyzed. We observed that there was a potential MBS binding site (CTGTTG) in the PgGSTF6 gene promoter region (−638–633) (Figure 5e and Figure S4). To further determine if PgMYB1 could directly bind to the binding site, yeast one-hybrid (Y1H) assays were performed. As expected, PgMYB1 could interact with MBS (CTGTTG), while PgMYB1 could not bind when the MBS (CTGTTG) site was mutated to mMBS (CGGTGG) (Figure 5f). Together, these data indicate that PgMYB1 directly binds to the CTGTTG motif of the PgGSTF6 promoter region and activates its expression.

3. Discussion

Fruit color is one of the most important agronomic traits of fruit quality and is an important attribute in terms of consumer preference. Anthocyanins in fruit not only confer different bright colors but are also beneficial for human health. Therefore, it is of great significance to study the regulation of anthocyanin biosynthetic pathways. Glutathione S-transferase (GST) has been shown to play a key role in anthocyanin transport [20,21,22,23,24].
Previous studies have shown that the abundance of GSTs in several horticultural crops, including peach, lychee, grape, and strawberry, is related to the pigmentation of the fruits [20,21,33,36]. MdGSTF6 is highly expressed in red apple fruits, and its expression abundance is positively correlated with anthocyanin content [34]. To date, the transcriptional regulation mechanism of GSTs in pomegranate has not been well investigated. In this study, we identified that PgGSTF6, a GST gene, was clustered within the GSTF clade, including MdGSTF6, which is positively correlated with anthocyanin content and is highly expressed in red apple fruits (Figure 2). We found a lower expression level of PgGSTF6 in S1–S6 of SBT than that in TSH, indicating that PgGSTF6 plays a key role in anthocyanin transport in pomegranate (Figure 3b). This finding provides new insight into anthocyanin transport and prompted us to explore the mechanism leading to high anthocyanin levels in red pomegranates.
MdMYB1 is an anthocyanin accumulation gene that responds to light signals in apple [37]. We found that PgMYB1 was clustered within the R2R3-MYB clade, including MdMYB1 and CmMYB6 (Figure 1a), which are involved in anthocyanin accumulation. Subcellular localization analysis of PgMYB1 showed that the 35S:PgMYB1-GFP fluoresced in the nucleus (Figure 1b,c), suggesting that PgMYB1 may be involved in pomegranate anthocyanin accumulation as a transcription factor. However, how PgMYB1 regulates the process of anthocyanin synthesis and transport in pomegranate needs further exploration.
In apple, MdMYBA and MdMYB1 regulate anthocyanin biosynthesis in fruit peel. Additionally, MdMYBA binds to the MdANS promoter, while MdMYB1 activates the transcription of MdDFR and MdUFGT [34,35]. We found that the anthocyanin content in pTRV2-PgMYB1 pomegranate peels was lower than that in pTRV2 pomegranate peels. Previous studies have shown that the GSTs play key roles in anthocyanin accumulation in Arabidopsis, petunia, and maize [38,39,40]. In our study, the lower expression levels of PgANS in peels of white fruits suggest that the lack of PgANS expression may be the main factor responsible for the absence of anthocyanins in white pomegranate. Furthermore, knockdown of PgMYB1 strongly downregulated the expression of PgGSTF6 and PgANS but did not affect the transcription of the other genes in the anthocyanin biosynthesis pathway (Figure 4c). We found that PgMYB1 could activate the expression of PgGSTF6 in pomegranate (Figure 5). Together, these results show that knockdown of PgMYB1 affects anthocyanin accumulation via downregulated expression of PgGSTF6 and PgANS.
Anthocyanin accumulation in fruit is a key quality trait in pomegranate. However, there have been few studies on anthocyanin accumulation in pomegranate. Therefore, how anthocyanin accumulation is regulated is important for clarifying the mechanism underlying pomegranate fruit coloration. In this study, our results reveal that the lower expression of PgMYB1 may affect anthocyanin accumulation via downregulated expression of PgGSTF6 and PgANS in pomegranate. This is because PgMYB1 directly activates the expression of the glutathione S-transferase (GST) gene PgGSTF6 and affects the expression level of the encoding anthocyanidin synthase (ANS) gene, PgANS, thus promoting anthocyanin accumulation (Figure 6). Our results reveal the mechanism leading to anthocyanidin accumulation in red peel pomegranate and provide new insights that are useful in the cultivation of red peel pomegranate with high contents of anthocyanins, which are beneficial to human health.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

The two pomegranate cultivars, TSH, with red fruit peels, and SBT, with white fruit peels at maturity, were grown in Tai’an, Shandong Province, China. Fruit peels were collected on the following six sampling dates, 10 July, 25 July, 9 August, 24 August, 8 September, and 23 September, and were designated as S1, S2, S3, S4, S5, and S6, respectively. We collected nine fruits from each cultivar at each stage. Peels from these fruits were pared with a knife and then immediately frozen in liquid nitrogen and stored at −80 °C until use.

4.2. RNA Extraction and qRT-PCR Analysis

Total RNA was extracted from ‘TSH’ and ‘SBT’ pomegranate peels using a Total RNA Isolation System (Tiangen, Beijing, China). The RT-PCR reactions were performed using qPCR SuperMix (TransGen Biotech, Beijing, China) with an Applied Biosystems 7500 real-time PCR system (Applied Biosystems, New York, NY, USA). Expression data were normalized to those of the pomegranate actin gene. Transcription levels were calculated using the cycle threshold (Ct) 2−ΔΔCt method, according to Livak et al. (2001) [41]. All primers used in this study are listed in Table S1.

4.3. Sequence Alignments and Phylogenetic Analysis

The sequence alignment was performed as described by Wang et al. (2019) [13]. Two phylogenetic trees were constructed using the full-length amino acid sequences of 18 pomegranate, 15 apple, 14 Arabidopsis, 5 dragon’s blood tree, and 7 maize GSTF protein sequences and 8 R2R3-MYB transcription factor protein sequences using MEGA 7.0 and the neighbor-joining (NJ) method as described by Li et al. (2022) [15].

4.4. Yeast One-Hybrid Assays

According to the manufacturer’s instructions, Y187 (Clontech, Palo Alto, CA, USA) was used for Y1H assays. The full-length PgMYB1 CDS was cloned into the pGADT7 vector to generate the construct AD-PgMYB1. The 2000 bp promoter sequences of PgGSTF6 were inserted into the pHIS2 vector (Clontech, Palo Alto, CA, USA) to generate the construct pHIS2–proPgGSTF6. AD-PgMYB1 and pHIS2–proPgGSTF6 were co-transformed into yeast Y187. The negative control was the pHIS2 empty vector. All primers used in this study are listed in Table S1.

4.5. Transient Expression Assays

Transient expression assays were conducted using tobacco leaves. The 2000 bp promoter sequences of PgGSTF6 were cloned into pCAMBIA1300 (Takara, Dalian, China) to generate the construct proPgGSTF6:GUS. The CDS of PgMYB1 was inserted into pCAMBIA1300 to generate the construct 35S:PgMYB1. The different combinations were co-transformed into tobacco leaves via an agrobacterium-mediated method. The injected tobacco grew for 2–3 days under normal conditions. The GUS activity was detected via GUS staining and GUS expression quantity. All primers used in this study are listed in Table S1.

4.6. Virus-Induced Gene Silencing of PgMYB1 in Pomegranate

A 459 bp fragment of PgMYB1 was amplified and cloned into the pTRV2 vector to generate the construct pTRV2-PgMYB1, and then the pTRV2, pTRV2-PgMYB1, and pTRV1 were each transformed into the GV3101 A. tumefaciens strain for the next VIGS experiments. The pTRV2 empty vector was used as the control. The pTRV2-PgMYB1 and pTRV2 vectors were injected into pomegranate peel along with pTRV1. The fruits of the ‘TSH’ cultivar were selected to inject the VIGS constructs. A total of 80 fruits were selected and divided into two groups, with one to three injections for each single fruit. The expression analysis was conducted on the infected area. The VIGS analysis was performed as described by Jiang et al. (2019) [34]. All primers used for VIGS experiments are listed in Table S1.

4.7. Measurement of Total Anthocyanins

The total anthocyanins of the fruit peels of TSH fruits after PgMYB1 silencing and pTRV2 empty vector were extracted using the HCl–methanol method. Then, 0.5 g of each sample was fully ground in liquid nitrogen and incubated with 5 mL cold 1% (v/v) methanol–hydrochloric acid in the dark for 24 h. The absorbances of samples at 650, 620, and 530 nm were measured using a UV-1600 spectrophotometer (Shimadzu, Kyoto, Japan). We used the formula OD=(A530–A620)–0.1(OD650–OD620) to calculate the anthocyanin contents of fruit peels of TSH fruits after PgMYB1 silencing and pTRV2 empty vector control treatment, according to Li et al. (2020) [42].

4.8. Subcellular Localization Analyses

PgMYB1 was cloned into the pRI101 vector (Takara, Dalian, China) to construct the 35S:PgMYB1-GFP recombinant vector. The vector was then transformed into Agrobacterium tumefaciens LBA4404 competent cells. Transgenic onion epidermal cells of 35S:PgMYB1-GFP were obtained as described by Wang et al. (2017) [43], while 35S:GFP was used as a negative control. All primers used in this study are listed in Table S1.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24076366/s1.

Author Contributions

Conceptualization, Z.W., Y.Y. and J.L.; methodology, Z.W., X.Y., C.W., L.F. and J.L.; software, J.L.; validation, J.L.; formal analysis, Z.W.; investigation, Z.W.; resources, Y.Y. and Z.W.; data curation, Z.W.; writing—original draft preparation, Z.W.; writing—review and editing, Y.Y. and J.L.; visualization, Z.W., Y.Y. and J.L.; supervision, Y.Y. and J.L.; project administration, Y.Y. and J.L.; funding acquisition, Z.W., Y.Y. and J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Natural Science Foundation of China (32102310 and 32202484), the Shandong Key Research and Development Program, China (2021LZGC007). The funds played no role in study design, data analysis, and manuscript preparation.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article or supplementary materials.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Stover, E.; Mercure, E.W. The pomegranate: A new look at the fruit of paradise. HortScience 2007, 42, 1088–1092. [Google Scholar] [CrossRef] [Green Version]
  2. Zhao, X.Q.; Yuan, Z.H.; Feng, L.J.; Fang, Y.M. Cloning and expression of anthocyanin biosynthetic genes in red and white pomegranate. J. Plant Res. 2015, 128, 687–696. [Google Scholar] [CrossRef]
  3. Yuan, Z.H.; Yin, Y.L.; Qu, J.L.; Zhu, L.Q.; Li, Y. Population genetic diversity in Chinese pomegranate (Punica granatum L.) cultivars revealed by fluorescent-AFLP markers. J. Genet. Genom. 2007, 34, 1061–1071. [Google Scholar] [CrossRef]
  4. Zhao, X.Q.; Yuan, Z.H.; Fang, Y.M.; Yin, Y.L.; Feng, L.J. Characterization and evaluation of major anthocyanins in pomegranate (Punica granatum L.) peel of different cultivars and their development phases. Eur. Food Res. Technol. 2013, 236, 109–117. [Google Scholar] [CrossRef]
  5. Field, T.S.; Lee, D.W.; Holbrook, N.M. Why leaves turn red in autumn. The role of anthocyanins in senescing leaves of red-osier Dogwood. Plant Physiol. 2001, 127, 566–574. [Google Scholar] [CrossRef]
  6. Schaefer, H.M.; Schaefer, V.; Levey, D.J. How plant-animal interactions signal new insights in communication. Trends Ecol. Evol. 2004, 19, 577–584. [Google Scholar] [CrossRef] [Green Version]
  7. Winkel-Shirley, B. Flavonoid biosynthesis. A colorful model for genetics, biochemistry, cell biology and biotechnology. Plant Physiol. 2001, 126, 485–493. [Google Scholar] [CrossRef] [Green Version]
  8. Rossi, A.; Serraino, I.; Dugo, P.; Di Paola, R.; Mondello, L.; Genovese, T.; Morabito, D.; Dugo, G.; Sautebin, L.; Caputi, A.P.; et al. Protective effects of anthocyanins from blackberry in a rat model of acute lung inflammation. Free Radic. Res. 2003, 37, 891–900. [Google Scholar] [CrossRef] [Green Version]
  9. Tsuda, T.; Horio, F.; Uchida, K.; Aoki, H.; Osawa, T. Dietary cyanidin 3-O-beta-D-glucoside-rich purple corn color prevents obesity and ameliorates hyperglycemia in mice. J. Nutr. 2003, 133, 2125–2130. [Google Scholar] [CrossRef] [Green Version]
  10. Liu, R.H.; Liu, J.; Chen, B. Apples prevent mammary tumors in rats. J. Agric. Food Chem. 2005, 53, 2341–2343. [Google Scholar] [CrossRef]
  11. Mousavinejad, G.; Emam-Djomeh, Z.; Rezaei, K.; Khodaparast, M.H.H. Identification and quantification of phenolic compounds and their effects on antioxidant activity in pomegranate juices of eight Iranian cultivars. Food Chem. 2009, 115, 1274–1278. [Google Scholar] [CrossRef]
  12. Varasteh, F.; Arzani, K.; Barzegar, M.; Zamani, Z. Changes in anthocyanins in arils of chitosan-coated pomegranate (Punica granatum L. cv. Rabbab-e-Neyriz) fruit during cold storage. Food Chem. 2012, 130, 267–272. [Google Scholar] [CrossRef]
  13. Wang, Z.H.; Li, J.L.; Mao, Y.F.; Zhang, M.M.; Wang, R.; Hu, Y.L.; Mao, Z.Q.; Shen, X. Transcriptional regulation of MdPIN3 and MdPIN10 by MdFLP during apple self-rooted stock adventitious root gravitropism. BMC Plant Biol. 2019, 19, 229. [Google Scholar] [CrossRef] [Green Version]
  14. Wang, Z.H.; Li, J.L.; Yang, X.M.; Hu, Y.L.; Yin, Y.L.; Shen, X. MdFLP enhances drought tolerance by regulating MdNAC019 in self-rooted apple stocks. Plant Sci. 2022, 321, 111331. [Google Scholar] [CrossRef] [PubMed]
  15. Li, J.; Li, H.; Quan, X.; Shan, Q.; Wang, W.; Yin, N.; Wang, S.; Wang, Z.; He, W. Comprehensive analysis of cucumber C-repeat/dehydration-responsive element binding factor family genes and their potential roles in cold tolerance of cucumber. BMC Plant Biol. 2022, 22, 270. [Google Scholar] [CrossRef]
  16. Xu, W.; Dubos, C.; Lepiniec, L. Transcriptional control of flavonoid biosynthesis by MYB-bHLH-WDR complexes. Trends Plant Sci. 2015, 20, 176–185. [Google Scholar] [CrossRef] [PubMed]
  17. Takos, A.M.; Jaffé, F.W.; Jacob, S.R.; Bogs, J.; Robinson, S.P.; Walker, A.R. Light-induced expression of a MYB gene regulates anthocyanin biosynthesis in red apples. Plant Physiol. 2006, 142, 1216–1232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Ban, Y.; Honda, C.; Hatsuyama, Y.; Igarashi, M.; Bessho, H.; Moriguchi, T. Isolation and functional analysis of a MYB transcription factor gene that is a key regulator for the development of red coloration in apple skin. Plant Cell Physiol. 2007, 48, 958–970. [Google Scholar] [CrossRef] [PubMed]
  19. Pierantoni, L.; Dondini, L.; De Franceschi, P.; Musacchi, S.; Winkel, B.S.J.; Sansavini, S. Mapping of an anthocyanin-regulating MYB transcription factor and its expression in red and green pear, Pyrus communis. Plant Physiol. Bioch. 2010, 48, 1020–1026. [Google Scholar] [CrossRef] [PubMed]
  20. Luo, H.; Dai, C.; Li, Y.; Feng, J.; Liu, Z.; Kang, C. Reduced Anthocyanins in Petioles codes for a GST anthocyanin transporter that is essential for the foliage and fruit coloration in strawberry. J. Exp. Bot. 2018, 69, 2595–2608. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Hu, B.; Zhao, J.; Lai, B.; Qin, Y.; Wang, H.; Hu, G. LcGST4 is an anthocyanin-related glutathione S-transferase gene in Litchi chinensis Sonn. Plant Cell Rep. 2016, 35, 831–843. [Google Scholar] [CrossRef] [PubMed]
  22. Gomez, C.; Terrier, N.; Torregrosa, L.; Vialet, S.; Fournier-Level, A.; Verriès, C.; Souquet, J.M.; Mazauric, J.P.; Klein, M.; Cheynier, V.; et al. Grapevine MATE-type proteins act as vacuolar H+-dependent acylated anthocyanin transporters. Plant Physiol. 2009, 150, 402–415. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Francisco, R.M.; Regalado, A.; Ageorges, A.; Burla, B.J.; Bassin, B.; Eisenach, C.; Zarrouk, O.; Vialet, S.; Marlin, T.; Chaves, M.M.; et al. ABCC1, an ATP binding cassette protein from grape berry, transports anthocyanidin 3-O-Glucosides. Plant Cell. 2013, 25, 1840–1854. [Google Scholar] [CrossRef] [Green Version]
  24. Sun, Y.; Li, H.; Huang, J.R. Arabidopsis TT19 functions as a carrier to transport anthocyanin from the cytosol to tonoplasts. Mor. Plant. 2012, 5, 387–400. [Google Scholar] [CrossRef]
  25. Lallement, P.A.; Brouwer, B.; Keech, O.; Hecker, A.; Rouhier, N. The still mysterious roles of cysteine-containing glutathione transferases in plants. Front. Pharmacol. 2014, 5, 192. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Zhu, J.H.; Li, H.L.; Guo, D.; Wang, Y.; Dai, H.F.; Mei, W.L.; Peng, S.Q. Transcriptome-wide identification and expression analysis of glutathione S-transferase genes involved in flavonoids accumulation in Dracaena cambodiana. Plant Physiol. Biochem. 2016, 104, 304–311. [Google Scholar] [CrossRef] [PubMed]
  27. Edwards, R.; Dixon, D.P. Plant glutathione transferases. Methods Enzymol. 2005, 401, 169–186. [Google Scholar]
  28. Liu, Y.J.; Han, X.M.; Ren, L.L.; Yang, H.L.; Zeng, Q.Y. Functional divergence of the glutathione S-transferase supergene family in Physcomitrella patens reveals complex patterns of large gene family evolution in land plants. Plant Physiol. 2013, 161, 773–786. [Google Scholar] [CrossRef] [Green Version]
  29. Alfenito, M.R.; Souer, E.; Goodman, C.D.; Buell, R.; Mol, J.; Koes, R.; Walbot, V. Functional complementation of anthocyanin sequestration in the vacuole by widely divergent glutathione S-transferases. Plant Cell. 1998, 10, 1135–1149. [Google Scholar] [CrossRef] [Green Version]
  30. Kitamura, S.; Shikazono, N.; Tanaka, A. TRANSPARENT TESTA 19 is involved in the accumulation of both anthocyanins and proanthocyanidins in Arabidopsis. Plant J. 2004, 37, 104–114. [Google Scholar] [CrossRef]
  31. El-Sharkawy, I.; Liang, D.; Xu, K. Transcriptome analysis of an apple (Malus × domestica) yellow fruit somatic mutation identifies a gene network module highly associated with anthocyanin and epigenetic regulation. J. Exp. Bot. 2015, 66, 7359–7376. [Google Scholar] [CrossRef] [Green Version]
  32. Cardoso, S.; Lau, W.; Eiras Dias, J.; Fevereiro, P.; Maniatis, N. A candidate-gene association study for berry colour and anthocyanin content in Vitis vinifera L. PLoS ONE 2012, 7, e46021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Cheng, J.; Liao, L.; Zhou, H.; Gu, C.; Wang, L.; Han, Y. A small indel mutation in an anthocyanin transporter causes variegated colouration of peach flowers. J. Exp. Bot. 2015, 66, 7227–7239. [Google Scholar] [CrossRef] [Green Version]
  34. Jiang, S.; Chen, M.; He, N.; Chen, X.; Wang, N.; Sun, Q.; Zhang, T.; Xu, H.; Fang, H.; Wang, Y.; et al. MdGSTF6, activated by MdMYB1, plays an essential role in anthocyanin accumulation in apple. Hortic. Res. 2019, 6, 40. [Google Scholar] [CrossRef] [Green Version]
  35. Espley, R.V.; Hellens, R.P.; Putterill, J.; Stevenson, D.E.; Kutty-Amma, S.; Allan, A.C. Red colouration in apple fruit is due to the activity of the MYB transcription factor, MdMYB10. Plant J. 2007, 49, 414–427. [Google Scholar] [CrossRef] [Green Version]
  36. Conn, S.; Curtin, C.; Bézier, A.; Franco, C.; Zhang, W. Purification, molecular cloning, and characterization of glutathione S-transferases (GSTs) from pigmented Vitis vinifera L. cell suspension cultures as putative anthocyanin transport proteins. J. Exp. Bot. 2008, 59, 3621–3634. [Google Scholar] [CrossRef] [Green Version]
  37. An, J.P.; Wang, X.F.; Li, Y.Y.; Song, L.Q.; Zhao, L.L.; You, C.X.; Hao, Y.J. EIN3-LIKE1, MYB1, and ETHYLENE RESPONSE FACTOR3 act in a regulatory loop that synergistically modulates ethylene biosynthesis and anthocyanin accumulation. Plant Physiol. 2018, 178, 808–823. [Google Scholar] [CrossRef] [Green Version]
  38. Marrs, K.A.; Alfenito, M.R.; Lloyd, A.M.; Walbot, V. A glutathione S-transferase involved in vacuolar transfer encoded by the maize gene Bronze-2. Nature 1995, 375, 397–400. [Google Scholar] [CrossRef]
  39. Larsen, E.S.; Alfenito, M.R.; Briggs, W.R.; Walbot, V. A carnation anthocyanin mutant is complemented by the glutathione S-transferases encoded by maize Bz2 and petunia An9. Plant Cell Rep. 2003, 21, 900–904. [Google Scholar] [CrossRef]
  40. Jain, M.; Ghanashyam, C.; Bhattacharjee, A. Comprehensive expression analysis suggests overlapping and specific roles of rice glutathione S-transferase genes during development and stress responses. BMC Genom. 2010, 11, 73. [Google Scholar] [CrossRef] [Green Version]
  41. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  42. Li, J.; Luan, Q.; Han, J.; Zhang, C.; Liu, M.; Ren, Z. CsMYB60 directly and indirectly activates structural genes to promote the biosynthesis of flavonols and proanthocyanidins in cucumber. Hortic. Res. 2020, 7, 103. [Google Scholar] [CrossRef]
  43. Wang, N.; Xu, H.; Jiang, S.; Zhang, Z.; Lu, N.; Qiu, H.; Qu, C.; Wang, Y.; Wu, S.; Chen, X. MYB12 and MYB22 play essential roles in proanthocyanidin and flavonol synthesis in red-fleshed apple (Malus sieversii f. niedzwetzkyana). Plant J. 2017, 90, 276–292. [Google Scholar] [CrossRef] [Green Version]
Ijms 24 06366 g001 550
Figure 1. Phylogenetic analysis and subcellular localization of PgMYB1 protein in onion epidermal cells. (a) Phylogenetic tree of PgMYB1 and its close homologs in plant species. The red circle represents PgMYB1. (b) Schematic illustration of control construct (35S:GFP) and fusion vector (35S:PgMYB1-GFP). (c) PgMYB1 is localized in the nucleus of onion epidermal cells. GFP, green fluorescent protein. Bars, 50 μm.
Figure 1. Phylogenetic analysis and subcellular localization of PgMYB1 protein in onion epidermal cells. (a) Phylogenetic tree of PgMYB1 and its close homologs in plant species. The red circle represents PgMYB1. (b) Schematic illustration of control construct (35S:GFP) and fusion vector (35S:PgMYB1-GFP). (c) PgMYB1 is localized in the nucleus of onion epidermal cells. GFP, green fluorescent protein. Bars, 50 μm.
Ijms 24 06366 g001
Ijms 24 06366 g002 550
Figure 2. Phylogenetic tree of GSTF proteins in pomegranate, Arabidopsis, apple, dragon’s blood tree, and maize. The 18 pomegranate, 15 apple, 14 Arabidopsis, 5 dragon’s blood tree, and 7 maize GSTF protein sequences were aligned using ClustalW. The long red rectangular box represents PgGSTF6. The phylogenetic tree was constructed based on the neighbor-joining algorithm.
Figure 2. Phylogenetic tree of GSTF proteins in pomegranate, Arabidopsis, apple, dragon’s blood tree, and maize. The 18 pomegranate, 15 apple, 14 Arabidopsis, 5 dragon’s blood tree, and 7 maize GSTF protein sequences were aligned using ClustalW. The long red rectangular box represents PgGSTF6. The phylogenetic tree was constructed based on the neighbor-joining algorithm.
Ijms 24 06366 g002
Ijms 24 06366 g003 550
Figure 3. Expression patterns of PgMYB1, PgANS, and PgGSTFs in different developmental stages of TSH and SBT. (a) Stages of development in TSH and SBT pomegranates. The stages are designated as S1, S2, S3, S4, S5, and S6. (b) The expression levels of PgMYB1, PgANS, PgGSTF6, and PgGSTF9 in the different stages of development in TSH and SBT fruits. qRT-PCR was conducted in three biological replicates and three technical replicates, and one representative biological repeat is shown.
Figure 3. Expression patterns of PgMYB1, PgANS, and PgGSTFs in different developmental stages of TSH and SBT. (a) Stages of development in TSH and SBT pomegranates. The stages are designated as S1, S2, S3, S4, S5, and S6. (b) The expression levels of PgMYB1, PgANS, PgGSTF6, and PgGSTF9 in the different stages of development in TSH and SBT fruits. qRT-PCR was conducted in three biological replicates and three technical replicates, and one representative biological repeat is shown.
Ijms 24 06366 g003
Ijms 24 06366 g004 550
Figure 4. PgMYB1 positively regulates anthocyanin accumulation in pomegranate. (a) The phenotypes of TSH fruits after PgMYB1 silencing. The pTRV2 empty vector was used as the control. (b) The anthocyanin contents in fruit peels of TSH fruits after PgMYB1 silencing. ** p-values < 0.01 were considered statistically significant. (c) Transcription levels of PgMYB1, PgGSTF6, and the genes in the anthocyanin pathway in TSH fruits after PgMYB1 silencing and the pTRV2 empty vector control. Chalconesynthase (CHS accession number: AHZ97870.1), chalcone isomerase (CHI accession number: AHZ97871.1), flavanone 3-hydroxylase (F3H accession number: AHZ97872.1), dihydroflavonol 4-reductase (DFR accession number: AHZ97873.1), anthocyanidin synthase (ANS accession number: AHZ97874.1), and UDP-glucose: flavonoid-3-O-glucosyltransferase (UFGT accession number: AHZ97875.1). qRT-PCR was conducted in three biological replicates and three technical replicates, and one representative biological repeat is shown. * p-values < 0.05, ** p-values < 0.01 were considered statistically significant.
Figure 4. PgMYB1 positively regulates anthocyanin accumulation in pomegranate. (a) The phenotypes of TSH fruits after PgMYB1 silencing. The pTRV2 empty vector was used as the control. (b) The anthocyanin contents in fruit peels of TSH fruits after PgMYB1 silencing. ** p-values < 0.01 were considered statistically significant. (c) Transcription levels of PgMYB1, PgGSTF6, and the genes in the anthocyanin pathway in TSH fruits after PgMYB1 silencing and the pTRV2 empty vector control. Chalconesynthase (CHS accession number: AHZ97870.1), chalcone isomerase (CHI accession number: AHZ97871.1), flavanone 3-hydroxylase (F3H accession number: AHZ97872.1), dihydroflavonol 4-reductase (DFR accession number: AHZ97873.1), anthocyanidin synthase (ANS accession number: AHZ97874.1), and UDP-glucose: flavonoid-3-O-glucosyltransferase (UFGT accession number: AHZ97875.1). qRT-PCR was conducted in three biological replicates and three technical replicates, and one representative biological repeat is shown. * p-values < 0.05, ** p-values < 0.01 were considered statistically significant.
Ijms 24 06366 g004
Ijms 24 06366 g005 550

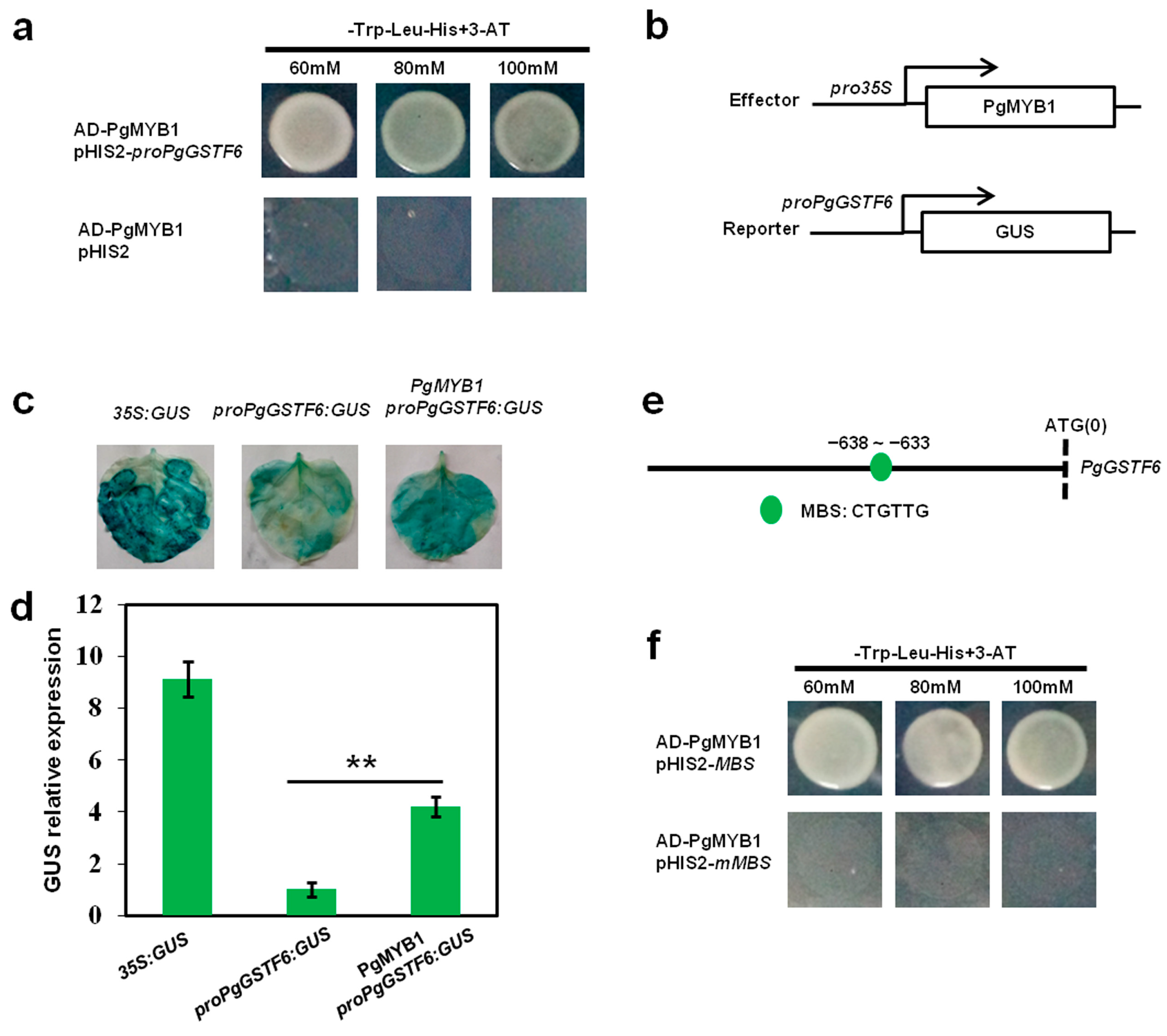

Figure 5. PgMYB1 directly regulates PgGSTF6 transcription. (a) Yeast-one-hybrid assays showed that PgMYB1 binds to the PgGSTF6 gene promoter. Positive colonies were screened on SD/-Trp-Leu-His medium containing optimal concentrations of 60 mM, 80 mM, and 100 mM 3-AT. (b) The 35S:PgMYB1 effector construct and the proPgGSTF6:GUS reporter construct were used for activity assays. (c) The PgMYB1 plus proPgGSTF6:GUS leaves showed significantly higher GUS activity. (d) qRT-PCR showed a higher GUS expression level in PgMYB1 plus proPgGSTF6:GUS tobacco leaves than in proPgGSTF6:GUS leaves. qRT-PCR was conducted in three biological replicates and three technical replicates, and one representative biological repeat is shown. ** p-values < 0.01 were considered statistically significant. (e) The location of the MBS (CTGTTG) motif on the PgGSTF6 gene promoter. (f) Yeast-one-hybrid assays showed that PgMYB1 binds to the MBS (CTGTTG) motif of the PgGSTF6 gene promoter, but not to the mMBS (CGGTGG). Positive colonies were screened on SD/-Trp-Leu-His medium containing optimal concentrations of 60 mM, 80 mM, and 100 mM 3-AT.
Figure 5. PgMYB1 directly regulates PgGSTF6 transcription. (a) Yeast-one-hybrid assays showed that PgMYB1 binds to the PgGSTF6 gene promoter. Positive colonies were screened on SD/-Trp-Leu-His medium containing optimal concentrations of 60 mM, 80 mM, and 100 mM 3-AT. (b) The 35S:PgMYB1 effector construct and the proPgGSTF6:GUS reporter construct were used for activity assays. (c) The PgMYB1 plus proPgGSTF6:GUS leaves showed significantly higher GUS activity. (d) qRT-PCR showed a higher GUS expression level in PgMYB1 plus proPgGSTF6:GUS tobacco leaves than in proPgGSTF6:GUS leaves. qRT-PCR was conducted in three biological replicates and three technical replicates, and one representative biological repeat is shown. ** p-values < 0.01 were considered statistically significant. (e) The location of the MBS (CTGTTG) motif on the PgGSTF6 gene promoter. (f) Yeast-one-hybrid assays showed that PgMYB1 binds to the MBS (CTGTTG) motif of the PgGSTF6 gene promoter, but not to the mMBS (CGGTGG). Positive colonies were screened on SD/-Trp-Leu-His medium containing optimal concentrations of 60 mM, 80 mM, and 100 mM 3-AT.
Ijms 24 06366 g005
Ijms 24 06366 g006 550
Figure 6. A working model of PgMYB1 function in anthocyanin accumulation. PgMYB1 directly binds to the promoter of PgGSTF6, thereby activating its transcriptional expression. Additionally, knockdown of PgMYB1 downregulated the expression of PgANS, indicating that PgMYB1 may activate transcriptional expression of PgANS and thus affect anthocyanin accumulation in pomegranate.
Figure 6. A working model of PgMYB1 function in anthocyanin accumulation. PgMYB1 directly binds to the promoter of PgGSTF6, thereby activating its transcriptional expression. Additionally, knockdown of PgMYB1 downregulated the expression of PgANS, indicating that PgMYB1 may activate transcriptional expression of PgANS and thus affect anthocyanin accumulation in pomegranate.
Ijms 24 06366 g006
